Contura IV Switches

The V-Series Contura IV, V, & VII snap-in rocker switches offer countless unique options including choices for ratings, circuits, colours, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colours, and can be illuminated with either oval or bar shaped lenses. An optional plug-in terminal connector enables prewiring of wire harnesses.

The Contura switches with sealed option, are certified to IP66/68, signifying complete protection against dust and prolonged spray and submersion under pressure, and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant. Temperature ratings range from -40°C to +85°C.

CONTURA IV ACTUATOR

The Contura IV’s “Shape to create a Shape” actuator works with the curves, contours & advanced styling of the latest panel designs, flowing with these advanced curves & radii. This actuator style fits on the Contura flush bracket/bezel.

DESIGN FEATURES

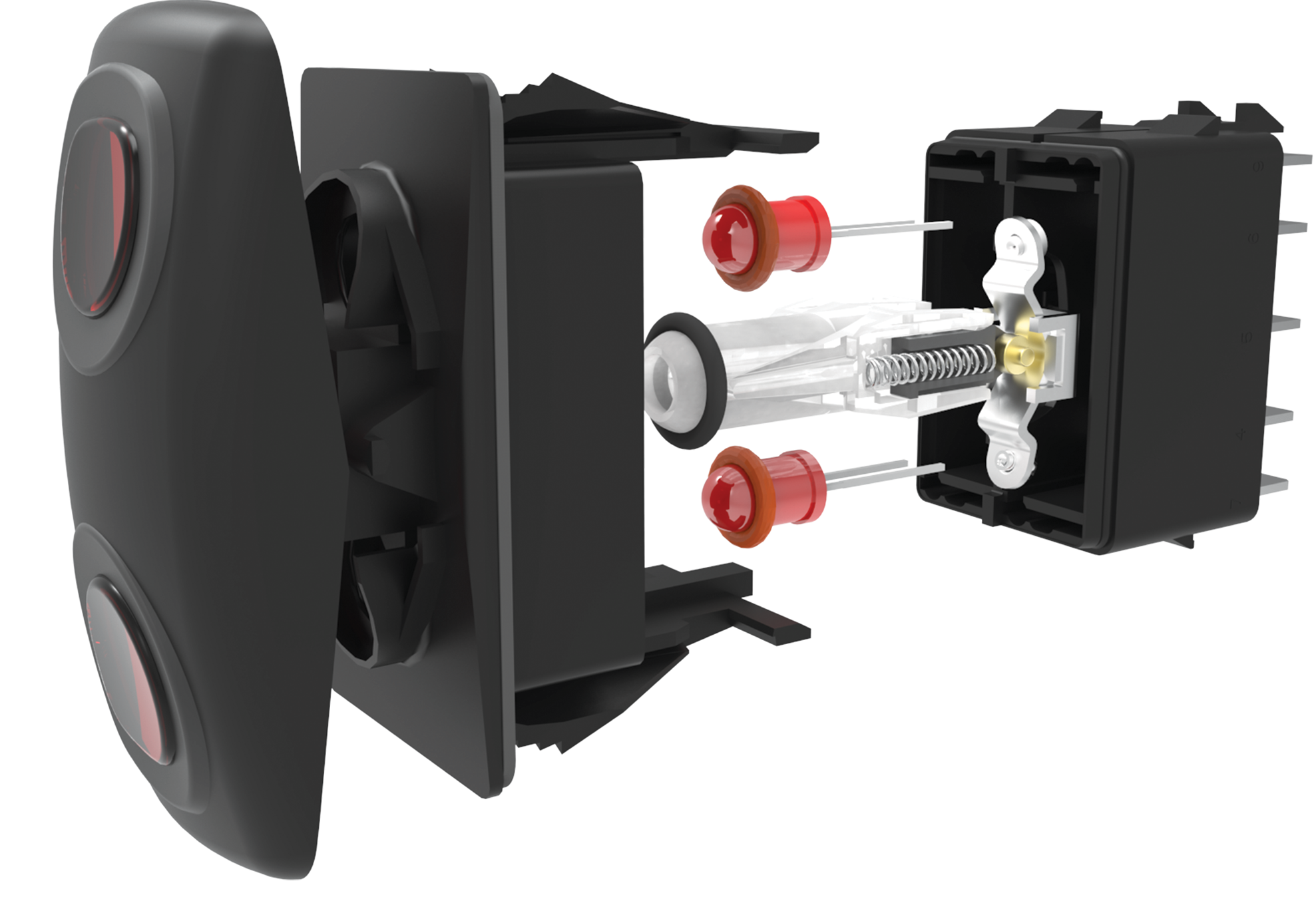

Carling V-Series Contura IV Rocker Switches

  • INTERCHANGEABLE ACTUATORS - Panel redesign is a snap with our wide range of rocker styles. Achieve maximum design variety with minimum inventory. Simply swap rockers to create an entirely new look for your panel.
  • DUAL SEAL PROTECTION - Seals out water, dust, debris, and sealed to IP66/68 for above-panel components
  • CLEAN CONNECTIONS - Options for both eight and ten terminal base styles with AMP & Packard compatible connectors affords myriad circuit options while providing ease of assembly.
  • OPTIONAL PANEL SEAL - Helps prevent water/dust ingress behind panel.
  • MULTIPLE LIGHTING OPTIONS - In addition to Incandescent lamps, our LED illumination is offered in a wide array of light intensities, colours, as well as dual level, tri-colour, and flashing options.
  • BRASS ROLLER PIN - Robust mechanism eliminates the need for lubricants. Enables switch to withstand -40°C to +85°C temperatures.
  • SILVER PLATED BUTT CONTACT MECHANISM - Providing 50k to 100k electrical cycles, circuit and load dependent.

How to order...

Unfortunately we do not stock Carling V-Series Contura IV rocker as they are generally bespoke to your requirements.

Bespoke requirements

If you have a specific requirement and are unable to find a suitable alternative within our stocked ranges, then it is possible for Dun-Bri Group to order bespoke switches.

Please note that there will be a minimum order quantity (which will depend on your configuration) and a lead time of around 6-8 weeks.

For more information...

If you need any further help, please do not hesitate to contact us.
