Contura XIV Switches

The V-Series Contura XIV snap-in rocker switches offer countless unique options including choices for ratings, circuits, colours, illuminations and legends. These single or double pole switches feature removable actuators in a choice of actuator styles and colours, and can be illuminated with either square or bar shaped lenses. An optional plug-in terminal connector enables pre-wiring of harnesses.

The Contura switches with sealed option, are certified to IP66/68, signifying complete protection against dust and prolonged spray and submersion under pressure, and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant. Temperature ratings range from -40°C to +85°C.

CONTURA XIV ACTUATOR

The Contura XIV represents a sleek new crossover rocker design which should appeal to Trucks, Buses and Heavy Vehicles as well as the Marine Industry. Intuitive feel is provided by recessed ridges along with a Center Groove which effectively defines the boundary between top and bottom switch functions.

DESIGN FEATURES

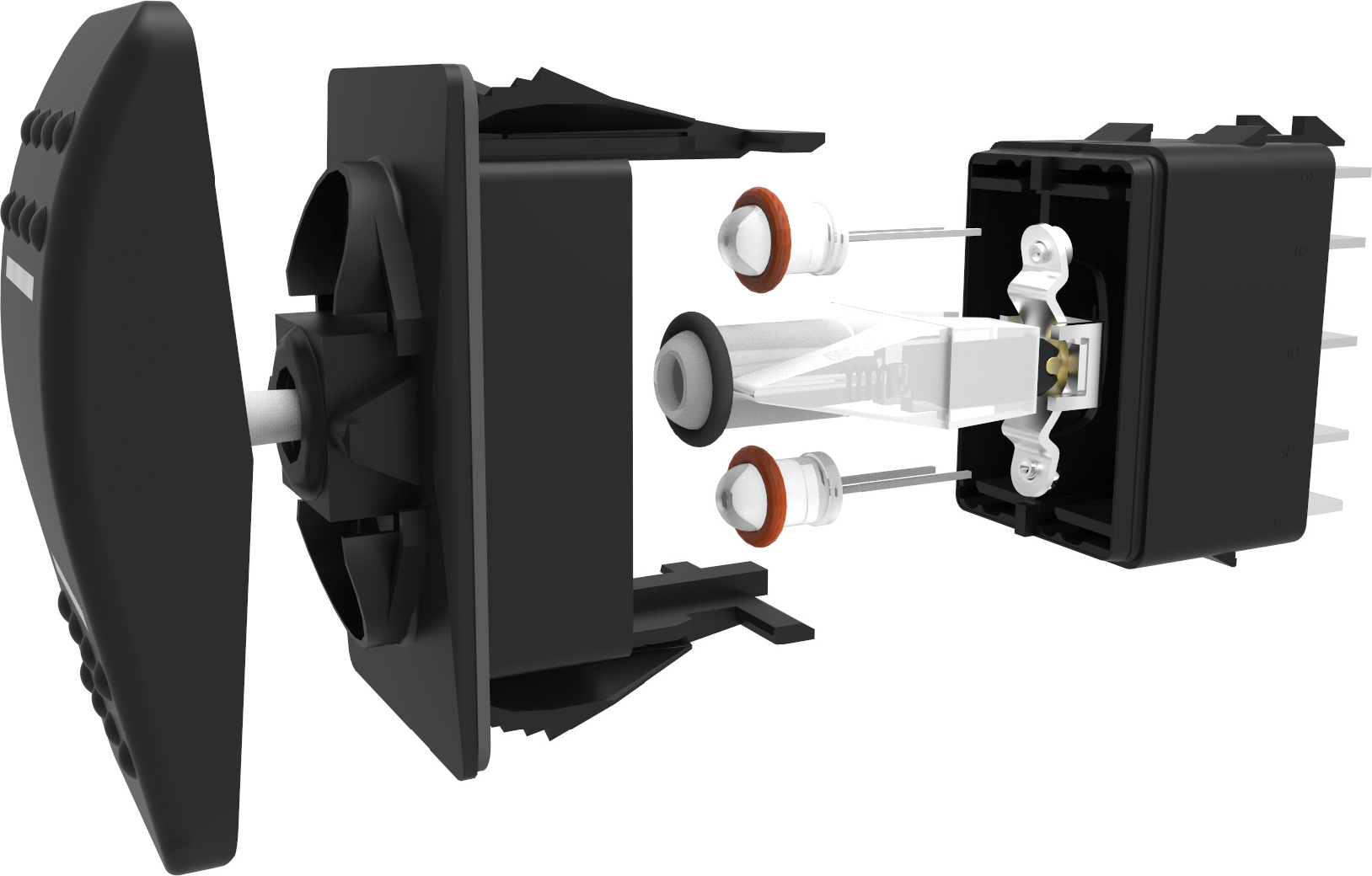

Carling V-Series Contura XIV Rocker Switches

  • INTERCHANGEABLE ACTUATORS - Panel redesign is a snap with our wide range of rocker styles. Achieve maximum design variety with minimum inventory. Simply swap rockers to create an entirely new look for your panel.
  • DUAL SEAL PROTECTION - Seals out water, dust, debris, and sealed to IP66/68 for above-panel components
  • CLEAN CONNECTIONS - Options for both eight and ten terminal base styles with AMP & Packard compatible connectors affords myriad circuit options while providing ease of assembly.
  • OPTIONAL PANEL SEAL - Helps prevent water/dust ingress behind panel.
  • MULTIPLE LIGHTING OPTIONS - In addition to Incandescent lamps, our LED illumination is offered in a wide array of light intensities, colours, as well as dual level, tri-colour, and flashing options.
  • BRASS ROLLER PIN - Robust mechanism eliminates the need for lubricants. Enables switch to withstand -40°C to +85°C temperatures.
  • SILVER PLATED BUTT CONTACT MECHANISM - Providing 50k to 100k electrical cycles, circuit and load dependent.

How to order...

Unfortunately we do not stock Carling V-Series Contura XIV rockers.

Bespoke requirements

If you have a specific requirement and are unable to find a suitable alternative within our stocked ranges, then it is possible for Dun-Bri Group to order bespoke switches.

Please note that there will be a minimum order quantity (which will depend on your configuration) and a lead time of around 6-8 weeks.

For more information...

If you need any further help, please do not hesitate to contact us.
