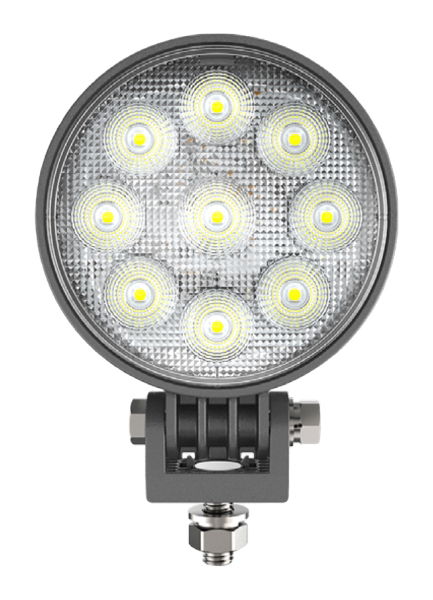

Maximum Output 9-LED Round Work Light – HTCA Series
The DBG 711.057 HTCA Series 9-LED Round LED Work Light is engineered for applications requiring maximum illumination from a compact round housing. Producing 3650 effective lumens (4550 raw lumens) from nine high-efficiency LEDs, it delivers a powerful, evenly distributed flood beam for demanding night-time and low-visibility working environments.
Designed for 12V and 24V vehicle electrical systems, this high-output round LED work lamp is fully sealed to IP67 and IP69K standards, providing protection against water immersion, heavy rain, dust ingress and high-pressure wash-down. Its robust construction makes it ideal for agricultural, plant and commercial vehicle installations.
Engineered for Heavy-Duty Performance

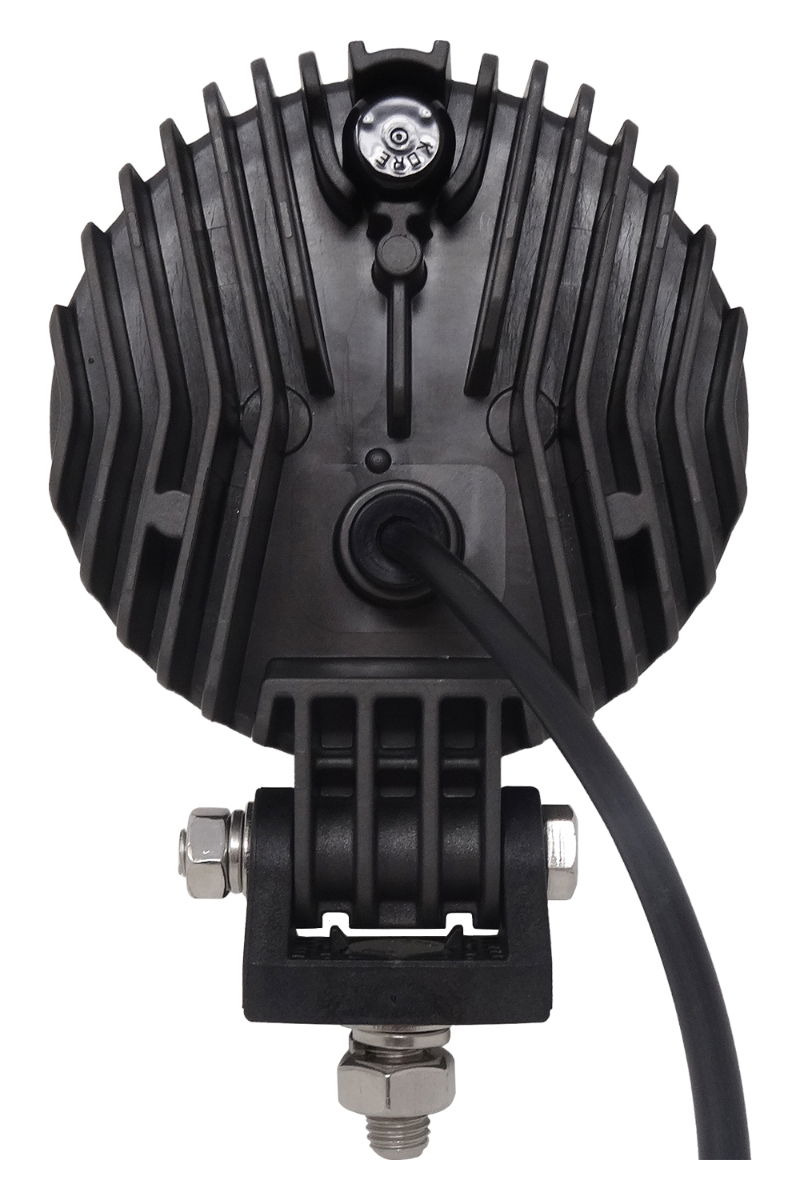

The high thermal conductivity housing efficiently dissipates heat away from internal components, reducing operating temperatures and supporting long service life. The impact-resistant polycarbonate lens and corrosion-resistant mounting bracket ensure reliable performance in harsh working conditions.
- 3650 effective lumens (4550 raw lumens)
- 9 high-efficiency LEDs

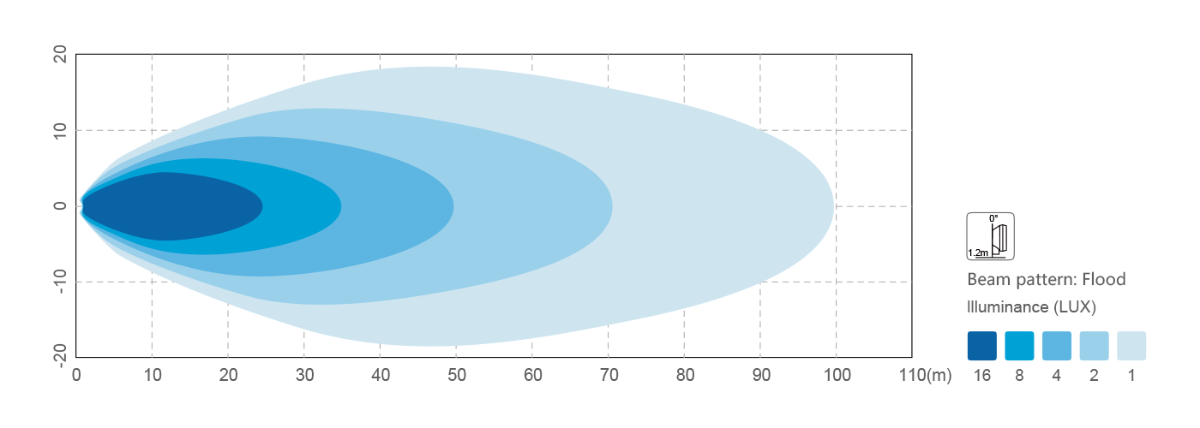

- Wide flood beam for large area illumination
- 12V / 24V multi-voltage compatibility
- IP67 & IP69K rated – dust tight & high-pressure wash resistant

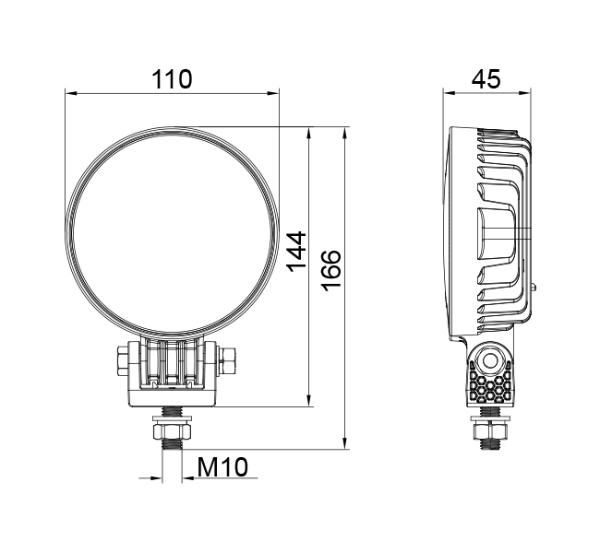

- Single bolt pedestal mounting
- Fly lead connection for professional installation
- Operating temperature: -40°C to +65°C
- ECE R10 approved
Ideal Applications
Perfect for tractors, construction machinery, excavators, telehandlers, utility vehicles and commercial fleets requiring maximum light output. The 9-LED configuration offers significantly greater area coverage than 4-LED and 6-LED models, making it the ideal choice where enhanced visibility and safety are critical.
As the flagship model in the HTCA round series, the 711.057 provides the highest light output while maintaining a compact, durable and easy-to-install design.
