Maximum Output 9-LED Work Light – HTCA Series
The DBG 711.056 HTCA Series 9-LED Square Work Light is engineered for operators requiring maximum area illumination in harsh working environments. Producing 3650 effective lumens (4550 raw lumens) from nine high-efficiency LEDs, this flood beam work light delivers powerful, evenly distributed light for close-range and mid-range task visibility.
Its advanced thermally efficient alloy housing is designed to dissipate heat effectively, reducing internal operating temperatures and supporting long-term reliability. Improved thermal management ensures consistent light output and dependable performance during extended periods of operation.
Built for Demanding Commercial & Industrial Use
With robust sealed construction, a durable polycarbonate lens and corrosion-resistant mounting bracket, the 711.056 is designed to withstand vibration, moisture, dust ingress and high-pressure wash conditions. The larger housing and 9-LED configuration deliver a substantial increase in brightness compared to lower-output models while maintaining a practical square mounting profile.
- 3650 effective lumens (4550 raw lumens)

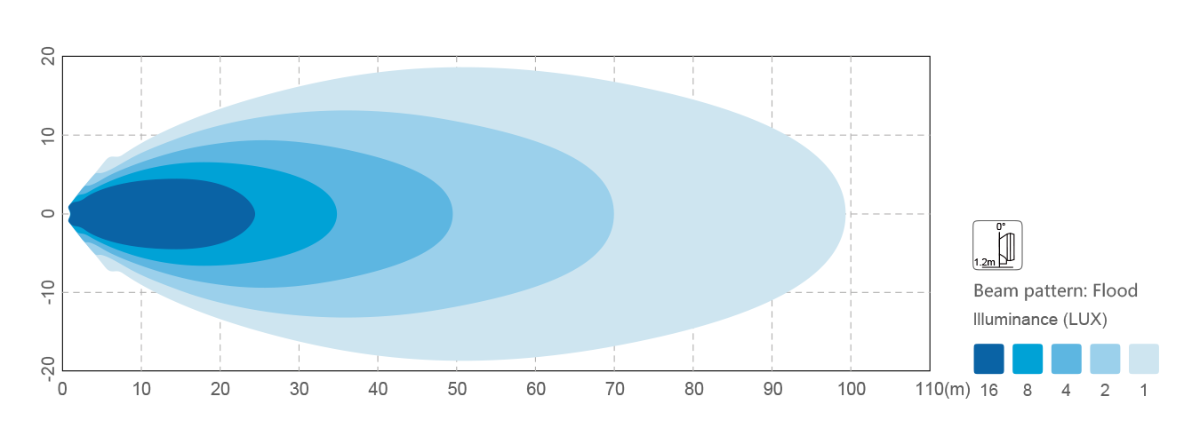

- 9 high-efficiency LEDs for wide flood beam coverage
- Even light distribution for improved working visibility

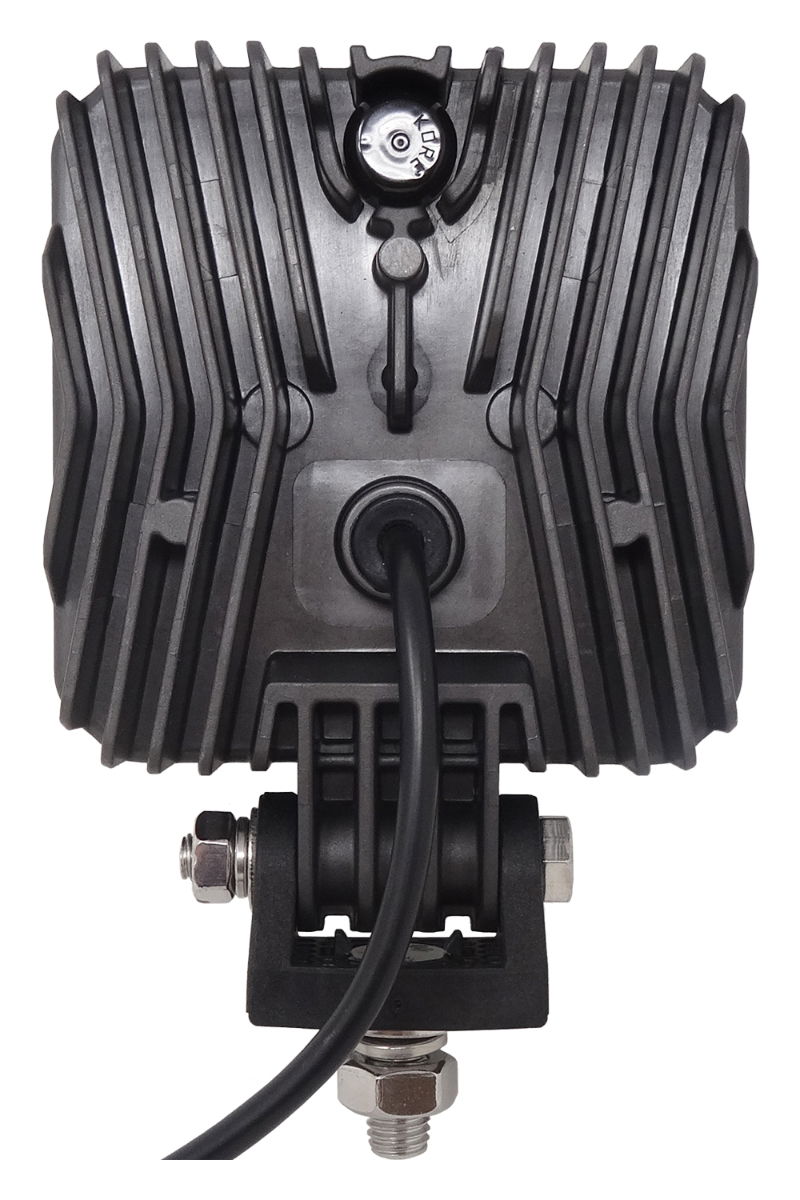

- High-conductivity housing design for superior heat dissipation
- IP67 & IP69K rated – protected against water ingress and high-pressure wash
- 12V / 24V multi-voltage compatibility
- Durable polycarbonate lens

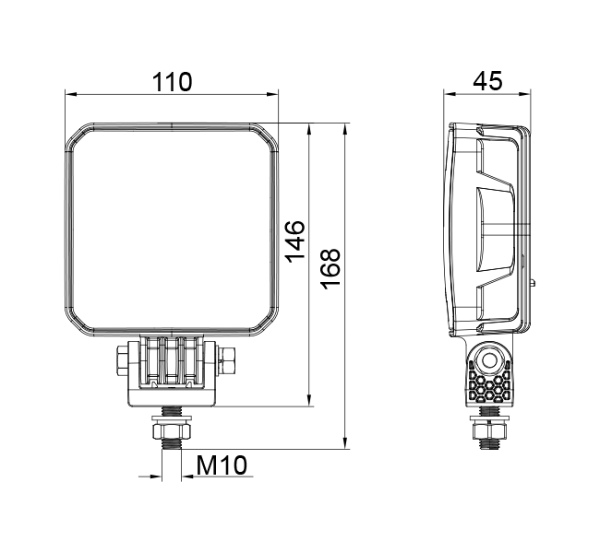

- Single bolt pedestal mounting
- Fly lead connection for professional installation
- Operating temperature: -40°C to +65°C
- ECE R10 approved & CISPR 25 Class 3 compliant
Ideal Applications
Suitable for agricultural machinery, construction equipment, plant vehicles, utility fleets and commercial vehicles requiring higher output work lighting. This model is ideal where improved visibility directly supports operator safety, productivity and site efficiency.
