High Output 6-LED Round Work Light – HTCA Series
The DBG 711.055 HTCA Series 6-LED Round Work Light is engineered to provide enhanced brightness and wider area coverage while maintaining excellent thermal efficiency. Producing 2300 effective lumens (2800 raw lumens) from six high-efficiency LEDs, it delivers powerful, evenly distributed flood beam illumination for demanding working environments.

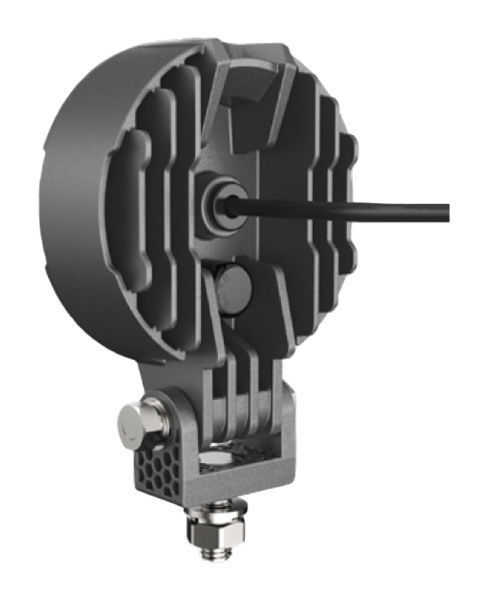

Its high thermal conductivity housing efficiently dissipates heat away from internal components, reducing operating temperatures and supporting long-term reliability. Consistent thermal management helps maintain stable light output during extended periods of operation.
Built for Demanding Commercial & Industrial Applications
Manufactured with a sealed housing, impact-resistant polycarbonate lens and corrosion-resistant mounting bracket, the 711.055 is designed to withstand vibration, moisture, dust ingress and high-pressure wash conditions. With IP67 and IP69K protection, it is suited to harsh agricultural and plant environments.
- 2300 effective lumens (2800 raw lumens)

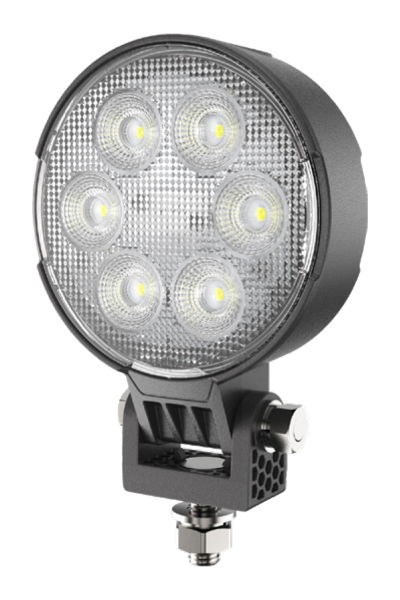

- 6 high-efficiency LEDs

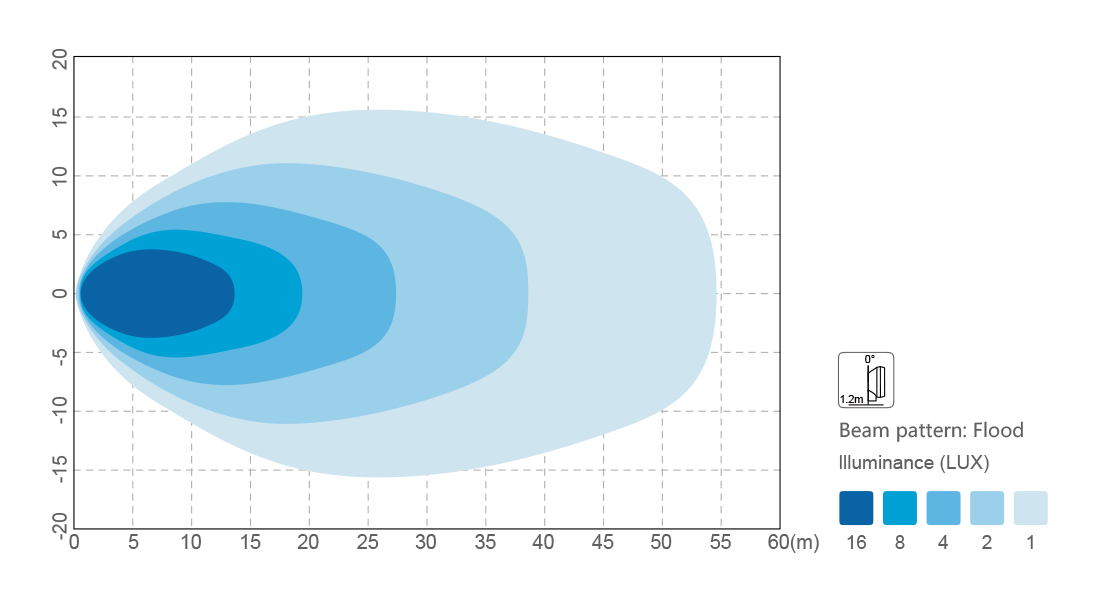

- Wide flood beam pattern for improved working visibility
- High thermal conductivity housing for superior heat dissipation
- IP67 & IP69K rated – water and high-pressure wash resistant
- 12V / 24V multi-voltage compatibility
- Durable polycarbonate lens
- Single bolt pedestal mounting
- Fly lead connection for professional installation
- Operating temperature: -40°C to +65°C
- ECE R10 approved & CISPR 25 Class 3 compliant
Ideal Applications
Suitable for tractors, construction machinery, plant equipment, utility fleets and commercial vehicles requiring higher output than compact models while maintaining a round mounting profile. The 6-LED configuration offers an ideal balance between size and performance within the DBG HTCA round range.
