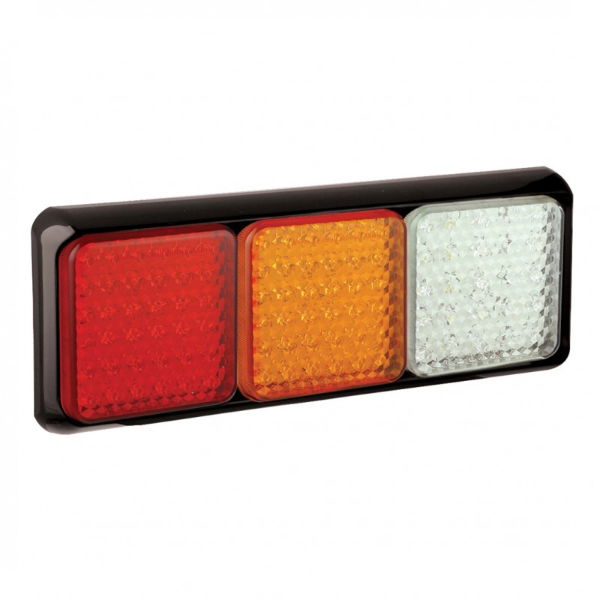

LED Autolamps 100 Series Triple LED Rear Combination Light | 4 Function (Rev.) | 352mm | 12/24V | Fly Lead | Left/Right | Black Bracket | Pack of 1 - [100BRAWME]

Stock Code: 309.100BRAWME

Barcode:

Supplier Part Number:

Minimum Quantity:

From inc VAT (%) VAT n/a Call Free
Discount:
Price inc VAT (%):
VAT n/a:

Elevate road safety and vehicle functionality with the LED Autolamps 100 Series Triple 12/24V Square LED Rear Combination Light, model [100BRAWME]. Designed for both left and right sides of commercial and emergency vehicles, this versatile, black-finished light provides a comprehensive solution for Stop, Tail, Indicator (S/T/I), and Reverse lighting needs.

Key Features & Benefits

  • 5-Year Warranty: Invest with confidence, thanks to our robust 5-year warranty that underscores our commitment to quality and durability.

  • 12/24V Dual Voltage Compatibility: Built for vehicles with diverse voltage requirements, this unit seamlessly adjusts between 12V and 24V systems.

  • IP67 Rated: Fortified for endurance, the IP67 rating guarantees protection against dust intrusion and temporary water submersion.

  • Efficient Current Draw: Experience efficient energy utilization with a low current draw of 0.38A for Stop and Indicator functions at 13.8V.

  • Versatile Functionality: This unit combines Stop, Tail, Indicator, and Reverse functionalities, all in a compact 350 x 120 x 31mm dimension with a 400mm fly lead.

  • Left/Right-Side Versatility: Engineered for both left and right sides of your vehicle, providing you with maximum flexibility and coverage.

  • Sleek Black Finish: The elegant black finish adds a modern aesthetic touch without compromising functionality.

Choose the LED Autolamps 100 Series [100BRAWME] for a versatile rear lighting solution that marries safety, efficiency, and design, allowing you to focus solely on the road ahead.

Lamp FunctionCombination | 4 Function (Rev.)
ConnectorFly Lead
Voltage12V, 24V
TechnologyLED
Position on VehicleLeft, Right
Approvals/ComplianceUNECE (for regulatory needs)
FunctionsRear Combination Lamp
List of FunctionsStop / Tail / Indicator / Reverse
Lens ColourAmber / Red / Clear
Bezel ColourBlack
Voltage Range12 / 24V
ConnectionFly Lead
Cable Length400mm
TechnologyLED
Current Draw (Stop)0.38A @13.8V / 0.24A @28V
Current Draw (Tail)0.04A @13.8V / 0.07A @28V
Current Draw (Indicator)0.38A @13.8V / 0.23A @28V
Current Draw (Reverse)0.31A @13.8V / 0.17A @28V
Position on VehicleLeft or Right Hand
Mounting OptionSurface Mount, 4 Holes

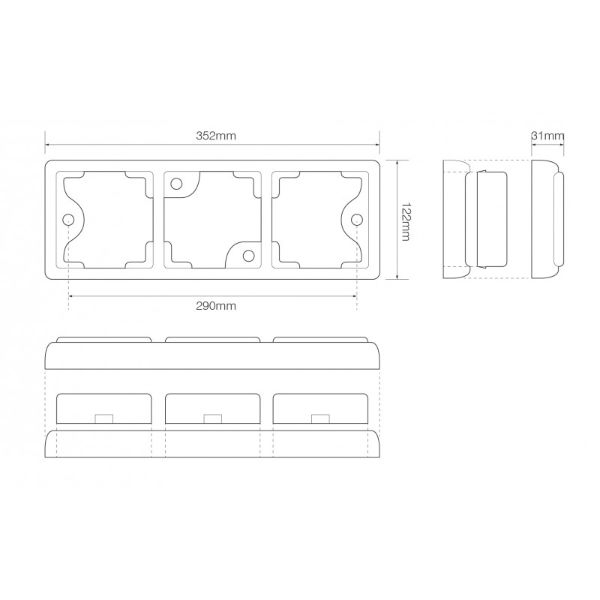

Item Dimensions350mm (l) x 120mm (w) x 31mm (d)
ApprovalsE Marked (ECE R6, ECE R7, ECE R23) / EMC Approved (ECE R10)
IP RatingIP 67
BrandLED Autolamps
RangeTriple Combination Rear Lamps
Model100 Series
Manufacturer's Part Number (s)100BRAWME
Manufacturer's Warranty5 Years
Name File Name
DATASHEET - LED Autolamps 100 Series Triple LED Rear Combination Lights DATASHEET - LED Autolamps 100 Series Triple LED Rear Combination Lights.pdf
