LITE-wire/Perei 110 Series LED LEFT 328mm Rear Combination Lamp | S/T/I/R/F | Fly Lead - [PL.110.S.08]

Stock Code: 334.008

Barcode:

Supplier Part Number:

Minimum Quantity:

From inc VAT (%) VAT n/a Call Free
Discount:
Price inc VAT (%):
VAT n/a:

With its stylish design and incredible performance, the 110 Series is one of our most popular combination lamps. Available as either a combination lamp or individual signal lamps, the range can be used on any vehicle.

The modular combination rear lamp with integral reflex reflector and twin rear position illumination using the popular 95mm lamp package includes 3 functions. A housing only option is available for flexible mounting options for 95mm modular product.

Key Features

  • Integral reflex reflector
  • 10-30 volt operation
  • LED long life reliability
  • Twin rear position illumination
  • Modular design
APPROVAL-E-MARKED IMG - ApprovalsECE
Number of Functions6
FunctionsRear Combintaion Light
List of FunctionsStop / Tail / Indicator / Fog / Reverse / Reflector
Lens ColourRed / Clear
Voltage Range10-30V
ConnectionFly Lead
Cable Length500mm
TechnologyLED
Power ConsumptionStop: 0.2W / Tail: 0.5W / Indicator: 1.6W / Fog: 2.5W / Reverse: 1.6W
Lens MaterialPMMA
Housing MaterialABS/Polycarbonate
Position on VehicleLeft Hand
Mounting OptionSurface Mount, 2x M8 Bolts

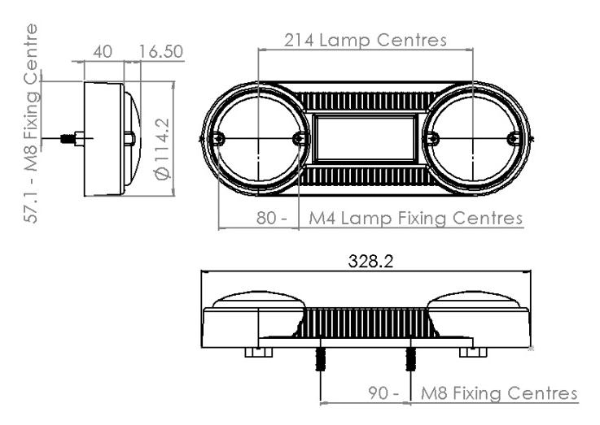

Item Dimensions328mm (l) x 114mm (w) x 40mm (d)
ApprovalsE Marked (ECE R6, ECE R7, ECE R23, ECE R38, ECE R3) / EMC Approved (ECE R10)
IP RatingIP67
Operating Temperature-40°C to +50°C
BrandLITE-wire
Range110 Series
Manufacturer's Part Number (s)PL.110.S.08
LED TechnologyLED
WARRANTY-1 YEAR IMG - Warranty1 Year
POSITION-LH IMG - Position on VehicleLEFT
CONNECTOR-Fly-Lead ConnectionFly Lead
Lamp FunctionsIndicator, Rear Fog, Stop, Tail/Position, Reverse
Name File Name
SPEC SHEET PC121-110-Series-Combination-Rear-Lamp-data-sheet.pdf
