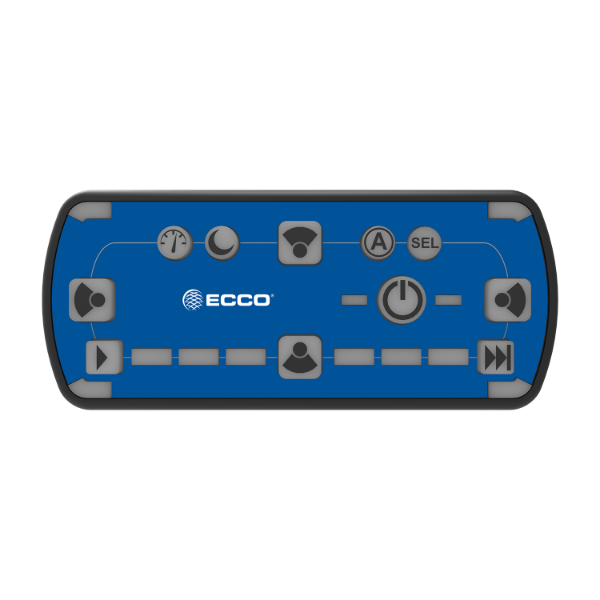

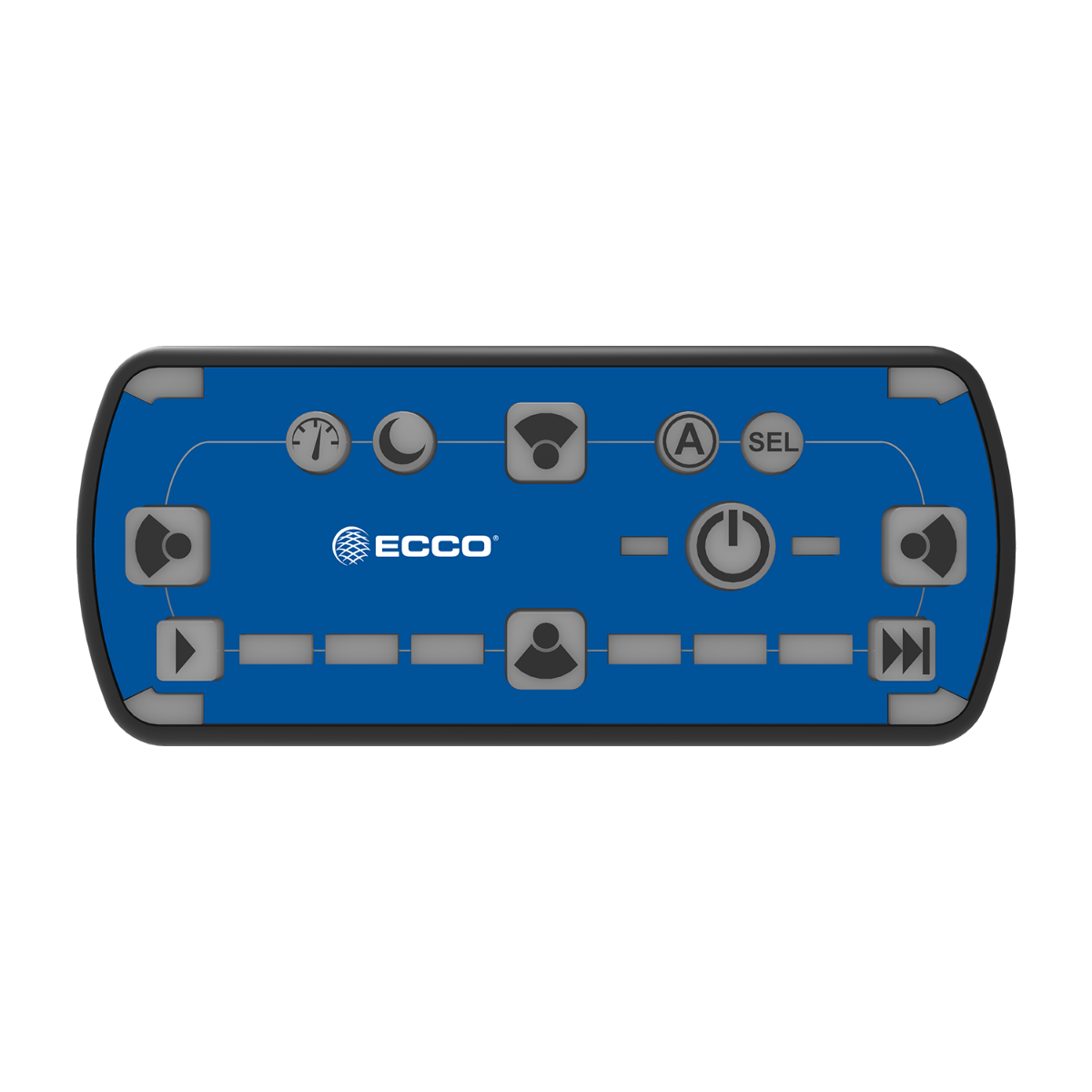

ECCO 12 Series Lightbar Advanced Touchpad Controller [EZ1202]

The EZ1202 optional in-cab advanced control pad provides convenient control of the lightbar’s built-in flash patterns and features soft touch buttons and LED function indicator lights.

Features

• “Power” - Press to cycle through three programmable flash pattern presets. Hold button down to shut down all functions. Press again to resume as before.
• “Cruise” - Press to illuminate all directional modules in steady burn mode.
• “Day/Night Mode” - Press to backlight the keypad and lower the brightness of the directional modules in the lightbar.
• “Auxiliary Output” - For use with the auxiliary output from the junction box to a relay (customer supplied), to control any auxiliary device via the junction box controlled relay.
• “Flash Pattern Select” - Double press to enter flash pattern select mode and cycle one flash pattern. The 4 corner LEDs on the controller will mimic the lightbar to give pattern feedback. Press again once to cycle to the next flash pattern. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used to the active preset.
• “Safety Director On/Off (if configured)” - Will resume pattern selected.
• “Safety Director Pattern Select” - Press once to cycle to the next Safety Director flash pattern. There is a 5 second delay between the controller and the lightbar. Press and hold for 3 seconds to return to the prior flash pattern. The lightbar will store the last flash pattern used.
• “Forward Worklamp” - Will turn on forward facing worklamps.
• “Rear Worklamp” - Will turn on rear facing worklamps.
• “Alley Left” - Will turn on left alley lights.
• “Alley Right” - Will turn on right alley lights

Special Features

• Touchpad Backlight
• Safety Director Module Selection
• Safety Director Front/Rear Selection
