High-Output Square LED Work Light – 10,200lm Flood Beam (DT Connector)
The DBG 711.046 is a heavy-duty square LED work light delivering a powerful
10,200 lumen wide flood beam for maximum area illumination in demanding environments.
Built for 12V/24V vehicle systems with 9–32V multi-voltage operation, this model is
fully sealed to IP69K for high-pressure washdown resistance and long-term reliability on plant,
agricultural and commercial vehicles. A secure Deutsch DT connector supports robust, professional
wiring and fleet standardisation.
Built for Tough Working Conditions
Designed for harsh day-to-day use, the 711.046 combines high-output performance with a rugged construction package:
a durable aluminium alloy housing, stainless steel mounting bracket and
impact-resistant polycarbonate lens. With compliance support including ECE R10 and
CISPR 25 Class 4 (as listed), it’s an ideal choice where dependable, high-output lighting is essential.
- 10,200lm wide flood beam output for maximum work-area coverage
- 9–32V multi-voltage (12V/24V systems)
- IP69K sealed – resistant to dust, water ingress and high-pressure washdown

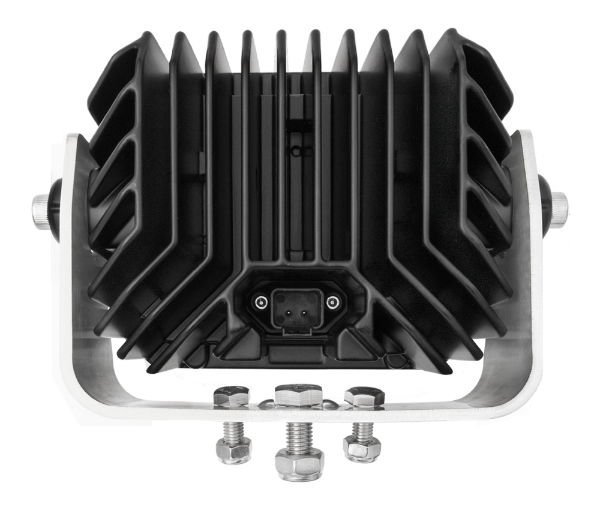

- Deutsch DT connector for secure, reliable connection
- Robust aluminium housing with polycarbonate lens for durability
- Heavy-duty mounting with stable bracket and pedestal fixing (3-bolt)
- Colour temperature: 6000K (as listed)
- Operating temperature: -45°C to +85°C (as listed)
- Approvals/Compliance: ECE R10, CISPR 25 Class 4 (as listed)
Ideal Applications
This high-output square work lamp is suited to vehicles and equipment that require strong, dependable flood lighting:
- Plant & construction equipment: excavators, loaders, road rollers, bulldozers, cranes
- Agricultural machinery: tractors, telehandlers, sprayers, harvesters
- Commercial & utility fleets: service bodies, trailers, site support vehicles
- Off-road & specialist vehicles: recovery, support and inspection applications
Recommended Related Item
For quick installation and a matching connection, pair with a compatible
Deutsch DT complete connector kit (female terminals / 2-way plug) as shown in the related products section.
Need a lower-output option in the same heavy-duty DT square style? Consider the 711.045 - 6400lm.
