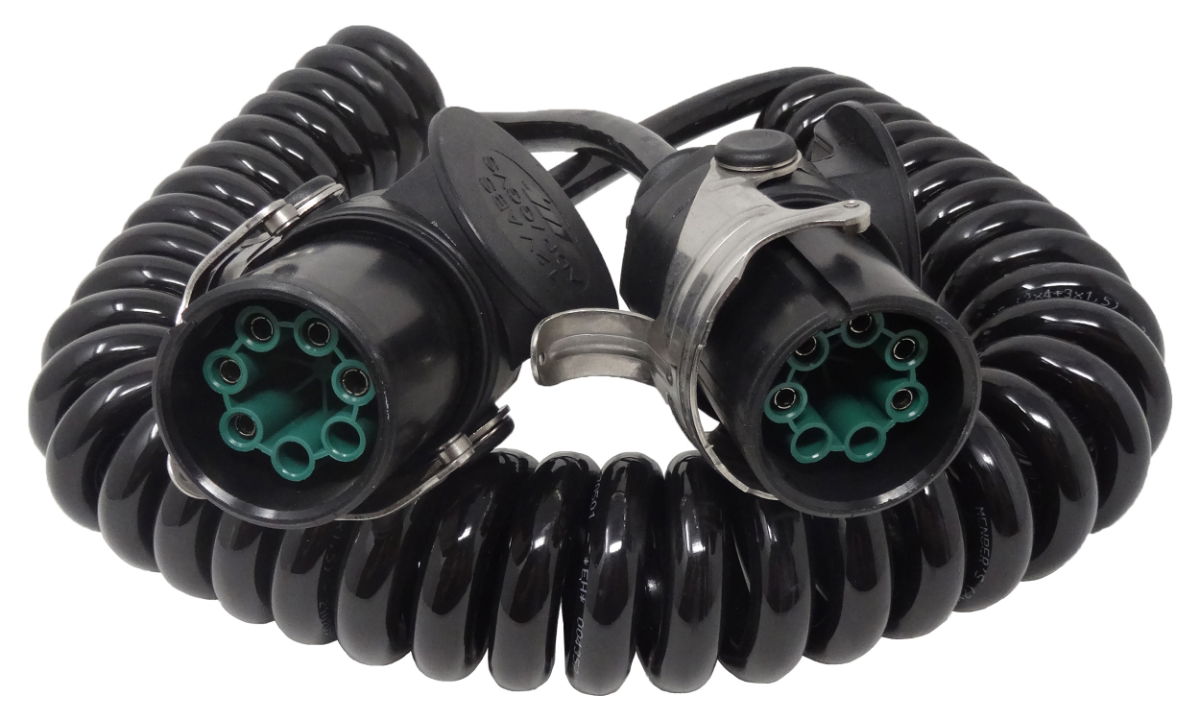

Menbers 12V ABS 5-Pin Coiled Electrical Cable | 4.5m - [005568.00]

Stock Code: 1030.80009

Barcode:

Supplier Part Number:

Minimum Quantity:

From inc VAT (%) VAT n/a Call Free
Discount:
Price inc VAT (%):
VAT n/a:

12V electrical coils with ABS are used to connect a trucks tractor and a semitrailers in the commercial vehicles sector, conforming to ISO 7638-1 and ISO 7638-2. They are authorized for electrical connections on vehicles transporting hazardous goods, based on the technical specifications given by ADR/GGVS norms.

The cables conform to ISO 4141 with external sheath made of Polyurethane (TPU) and are available only with small size 30mm turn diameter.

  • Standards: Conforms to ISO 7638-1 and ISO 4141 recommendations and standards.
  • External Polyurethane sheath provides high flexibility together with good mechanical characteristics even at very low temperature.
  • Polyurethane version has 4.5m maximum extensible length.
  • All coils are available with a bending protection grommet.

Specs

  • Cable Cores: 2x 4mm²+ 3x 1.5mm²
  • Housing: Plastic
  • Cable Material: Polyurethane
  • Voltage Rating: 12V
Connector TypePlug
BrandDun-Bri Group
RangeDun-Bri Approved
Product TypePlug Cable Kit
Cable Length4.5m
Connection TypeABS 5-Pin
Voltage12V
Voltage Rating12V
Connection7/5-Pin ABS/EBS Trailer (ISO 7638-2)
