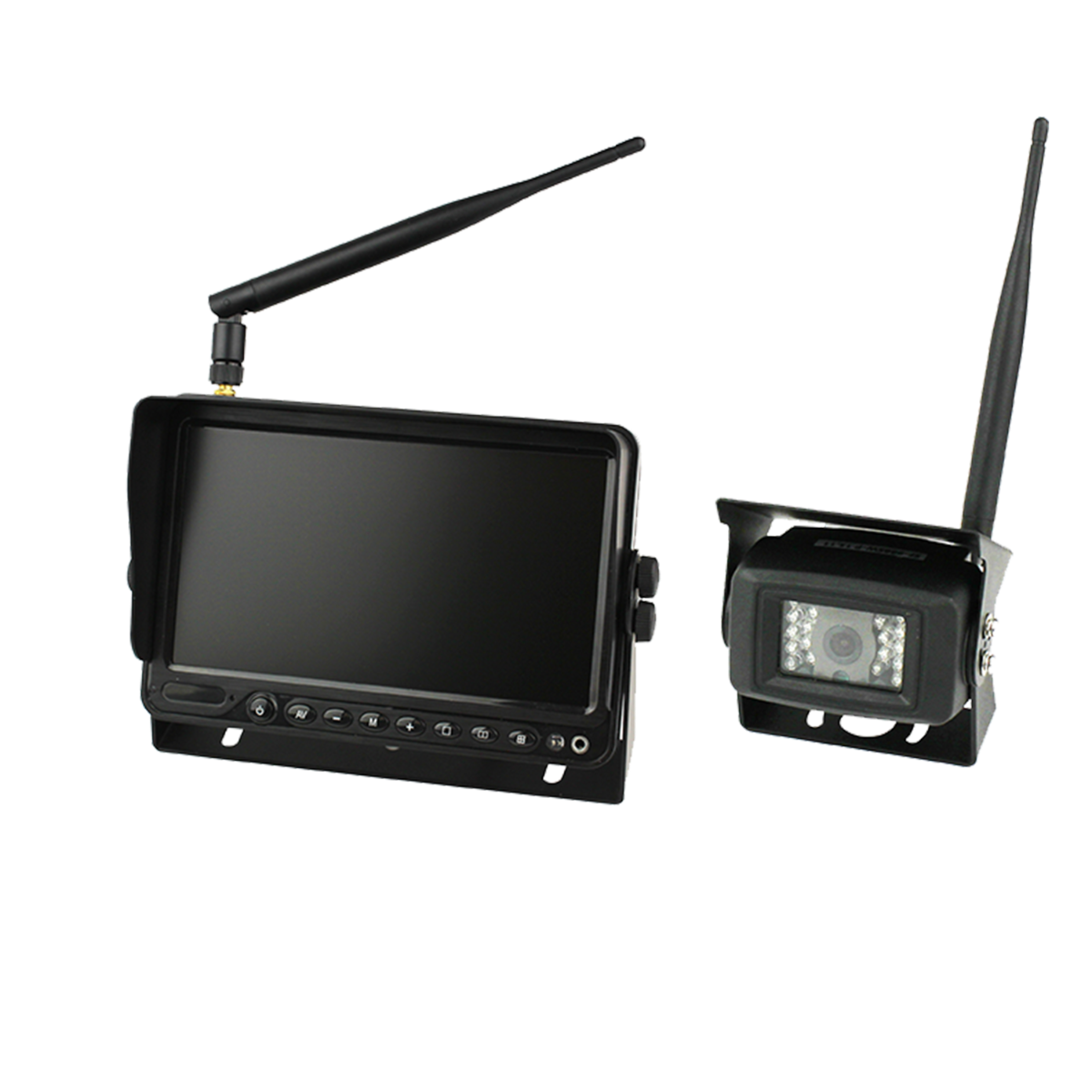

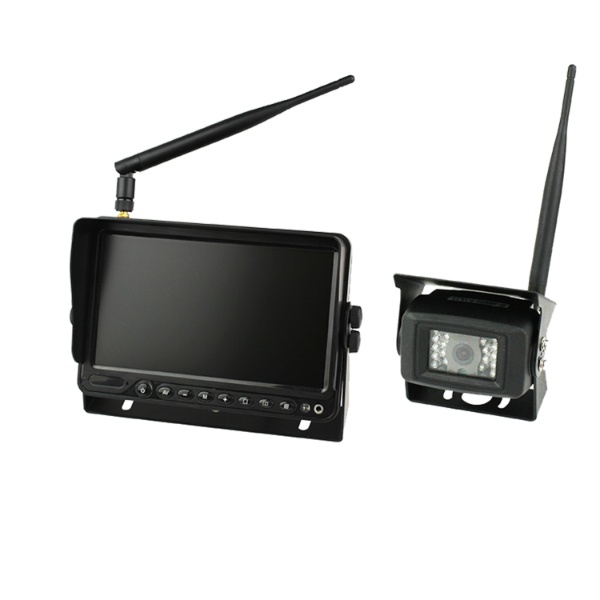

The Gemineye™ wireless camera system features 2.4GHZ digital signal transmission and offers quality and functionality equal to wired systems. Featuring a 7” LCD colour monitor and a CMOS infrared camera, this system delivers excellent picture quality. The system is expandable to operate up to 2 separate cameras (EC2028-WC only), each with independent trigger wires and all using a wireless signal to transmit image data to the monitor. This system dramatically reduces installation complexity and expense while eliminating the potential for wires being damaged during operation of the vehicle.
Features and Benefits
- Includes monitor sunshade
- Two camera expandable
- 2.4 GHZ digital wireless system
- Internal controller
- Wireless system reduces installation time
Monitor Specs (EC7000B-WM)
- Approvals: FCC, CE, RoHS, R10
- Voltage: 12-24
- Power consumption (W): 7
- Audio: No
- Day / night light sensor: Yes
- Dimensions: 176 x 123 x 27mm
- Weight: 0.67kg
- Temperature: -20° to +70°
- Screen size: 7.0"
- Mirror image: Yes
- Sunshade: Yes
- Max cameras: 2
- Distance: 30-100m
Camera Specs (EC2028-WM)
- Approvals: IP66, FCC, CE, RoHS, R10
- Colour: Yes
- Power consumption (W): 5
- Microphone: No
- Day / night light sensor: Yes
- Dimensions: 90 x 60.5 x 56.5mm
- Weight: 0.54 kgs
- Temperature: -20° to +70°
- Lens angle: 120°
- Lens size: 1/4"
- Infrared LEDs: 18
- Mechanical vibration: 8G
- Frame Rate: 25FPS
