DBG 4-Way Programmable Universal Controller | 12/24V - [308.5SC]

Stock Code: 308.5SC

Barcode:

Supplier Part Number:

Minimum Quantity:

From inc VAT (%) VAT n/a Call Free
Discount:
Price inc VAT (%):
VAT n/a:

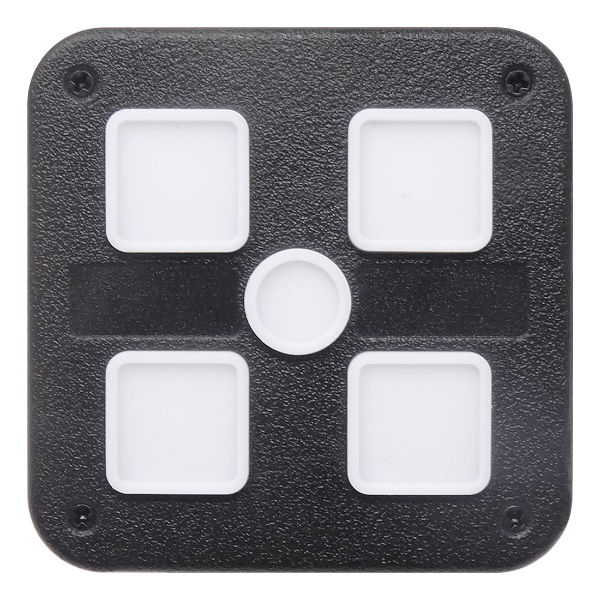

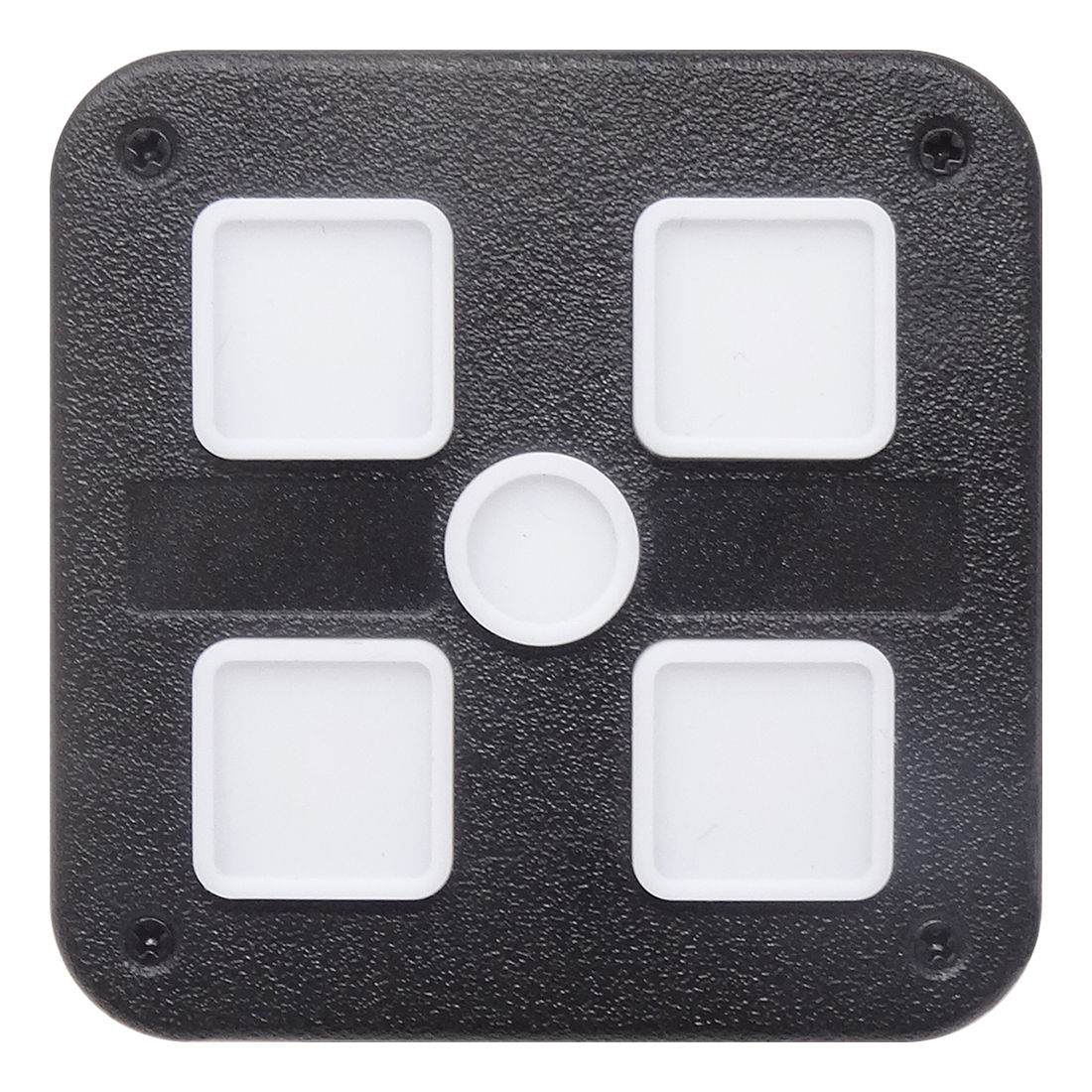

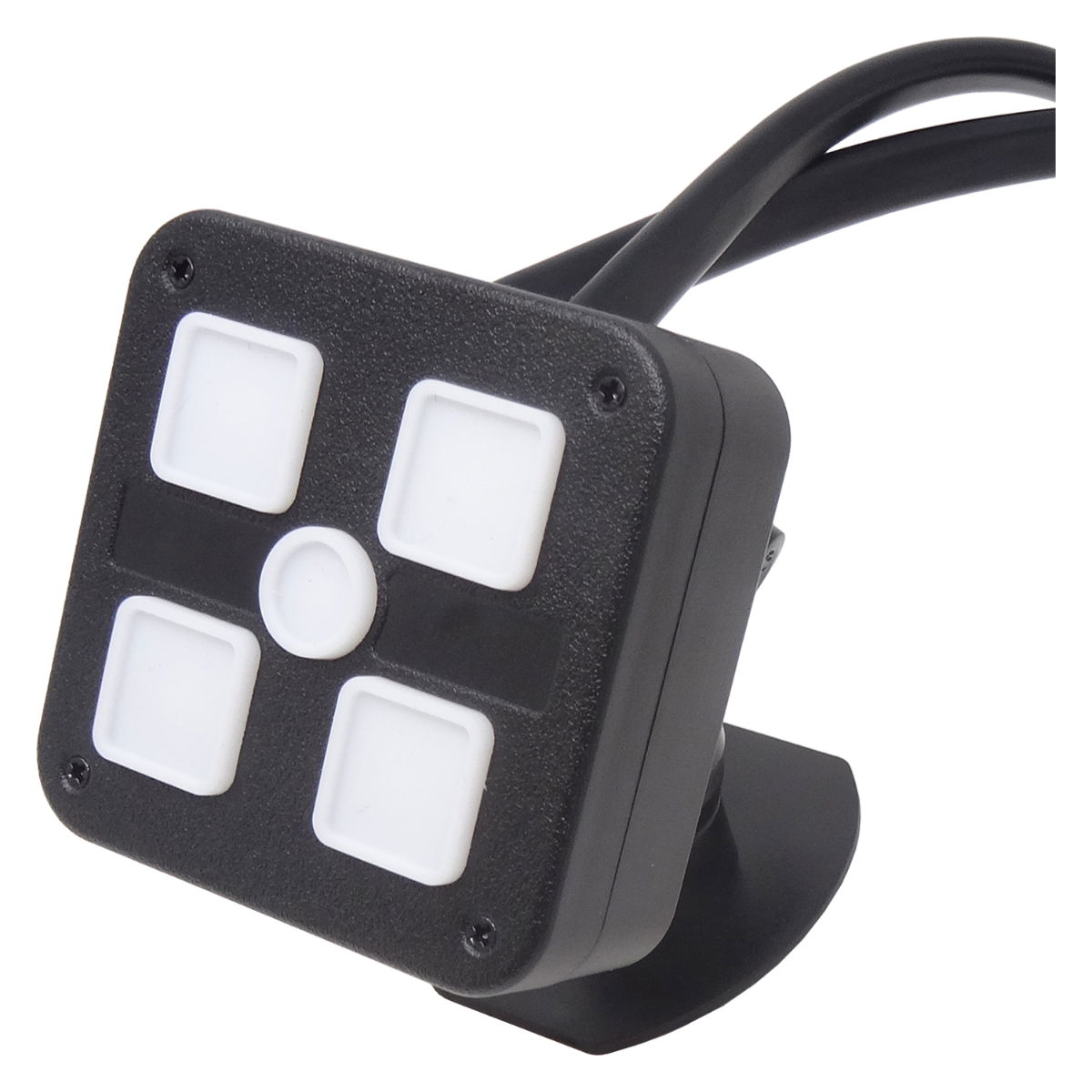

The DBG 4-Way Programmable Universal Controller is a compact, high-performance control unit designed for automotive and industrial applications. Featuring 4 programmable buttons (momentary or ON/OFF), an integrated relay, and built-in over-temperature and short circuit protection for reliable operation. Easy to install with a 300mm fly lead and multiple mounting options, it is ideal for custom switch panel setups combining versatility, safety, and durability in one sleek package.

  • All-in-one controller with integrated relay
  • 4 Programmable momentary or ON/OFF buttons
  • Universal compatibility
  • Over-temperature protection
  • Short circuit protection

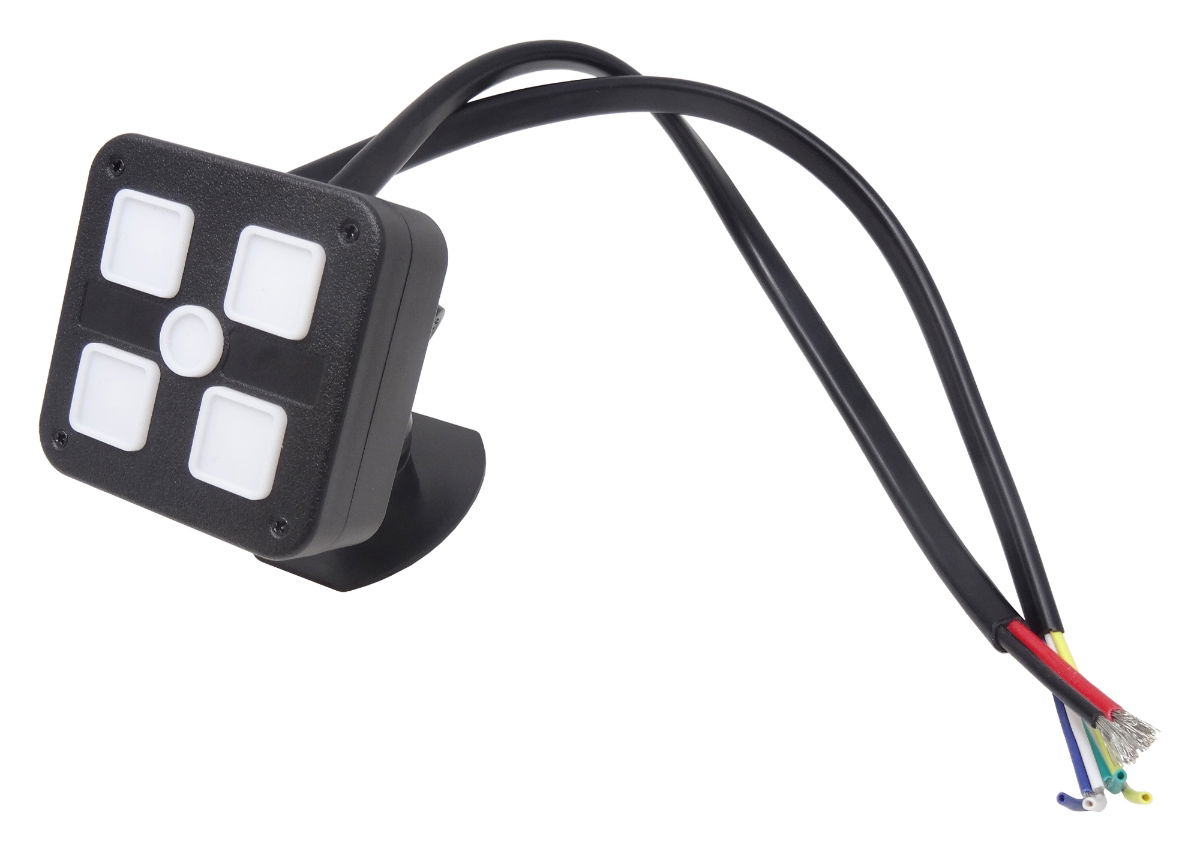

  • Fly lead connection (300mm)

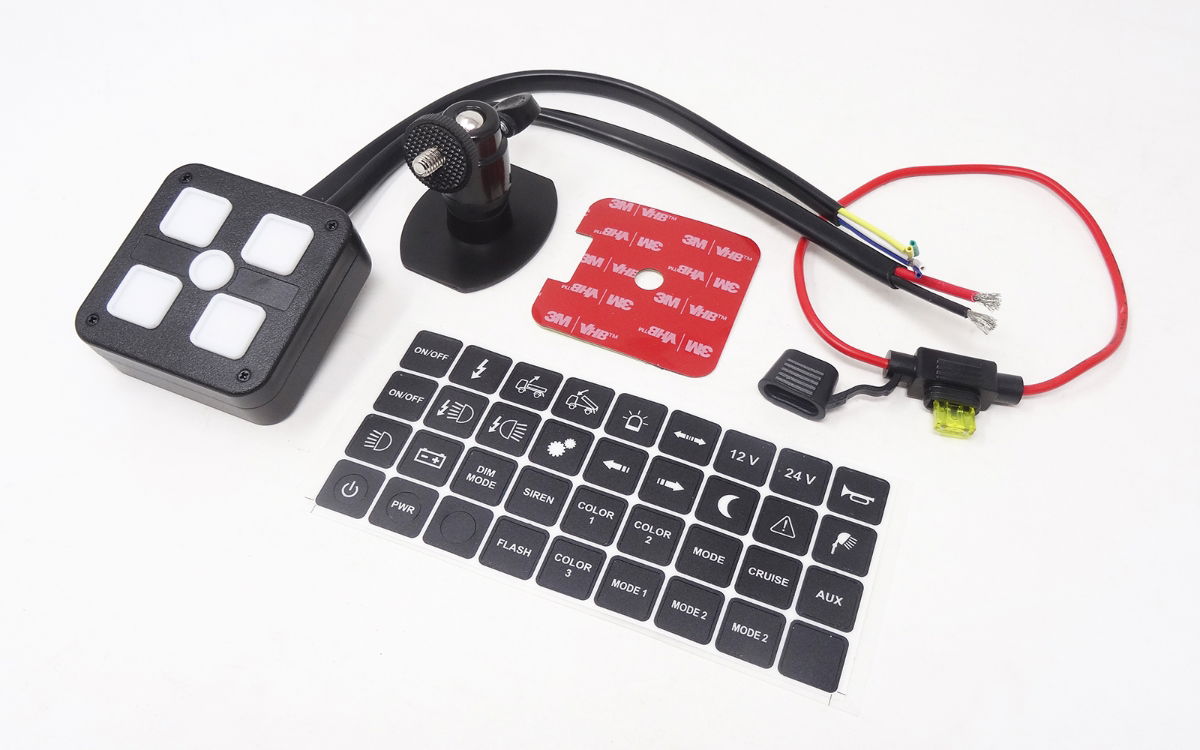

INCLUDES:

  • 4-Way controller w/ 3M self-adhesive

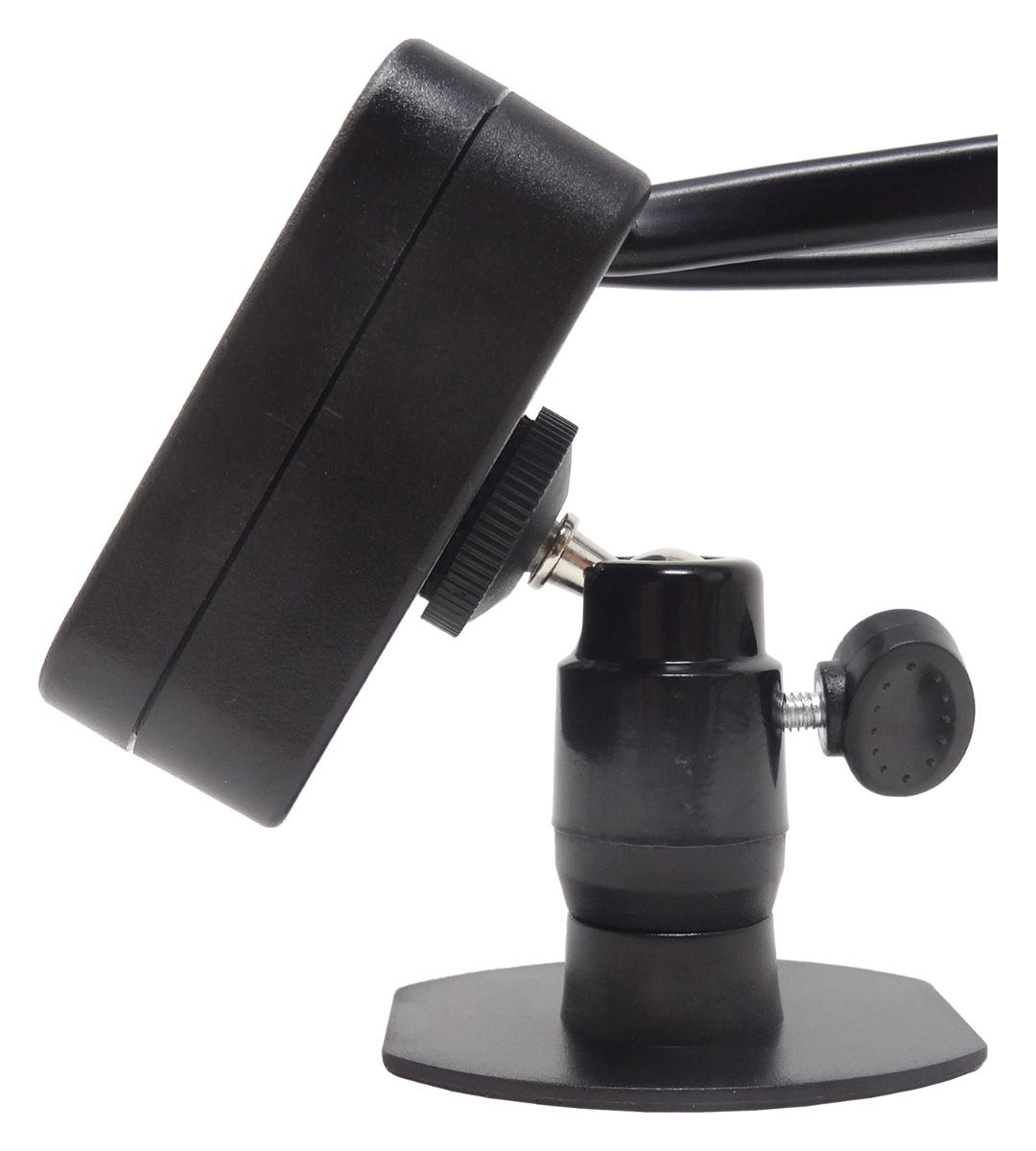

  • Bracket w/ 3M self-adhesive
  • 36 icon stickers
  • 20A Fuse and fuse holder
CategoryController / Switch Panel
Item Dimensions62mm (l) x 62mm (w) x 25mm (d)
FunctionOn/Off or (On)/Off
Voltage12/24V
FittingSelf-adhesive or Bracket w/ self-adhesive
Max Current (A)20A
ApprovalsECE R10
BrandDun-Bri Group
Manufacturer's Part Number(s)308.5SC
Manufacturer's Warranty2 Years
Name File Name
DATASHEET - DBG 4-Way Controller DATASHEET - DBG 4-Way Controller.pdf
INSTALLATION - DBG 4-Way Controller INSTALLATION - DBG 4-Way Controller.pdf
